Belt Conveyors
Our goal is to provide grain-handling alternatives to conventional systems with a focus on gentle handling at a high capacity with low maintenance. We manufacture for pulse crop, corn, bean and seed plant applications, and also create systems for grain and fertilizer handling.
Batco and Westfield Belt Conveyors and equipment are built tough for performance, yet designed and engineered for gentle handling of delicate crops, seeds and commodities.
Since specialty crops, seed, and some commodities are very susceptible to impact damage caused by conventional grain-handling systems, Batco Belt Conveyors minimize impact damage and help protect grade quality and germination performance of seed.
Batco and Westfield Conveyors are designed and built for high-capacity performance at a maximum operating angle of 30°. Capacity increases as the angle of elevation decreases.
Batco Belt Conveyors
2400 Series
Capacity rated up to 14,000 bu/hr
Available in lengths from 65' to 120'
14" diameter, 12-gauge tube
2000 Series
Capacity rated up to 9,000 bu/hr
Available in lengths from 35' to 120'
14" diameter, 12-gauge tube
1500 Series
Capacity rated up to 6,000 bu/hr
Available in lengths from 35' to 100'
10" diameter, 14-gauge tube
12-gauge tube for the first 30' on the 55' to 100' models
Pitstop solutions
10" diameter tube
15" wide belt
39' length

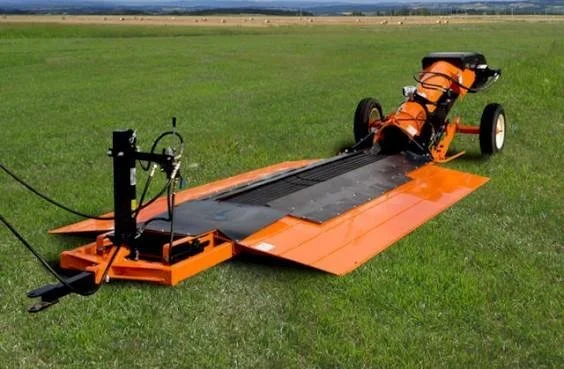

Field Loaders
14" Tube
18" or 23.5" Belt
Capacity rated up to 14,000 bu/hr
BCX 1539
10" diameter tube
15" wide belt
49' length
BCX 1549
7 1/2" hopper clearance - 9" clearance at transition
Discharge height: 28"
1500 - 38" x 56" collapsible hopper
Retractable to get under virtually all hopper bottoms and belly dump trailers
10" diameter 14 GA tube
15" 2-ply belt
Capacity - up to 6,000 bu/hr
